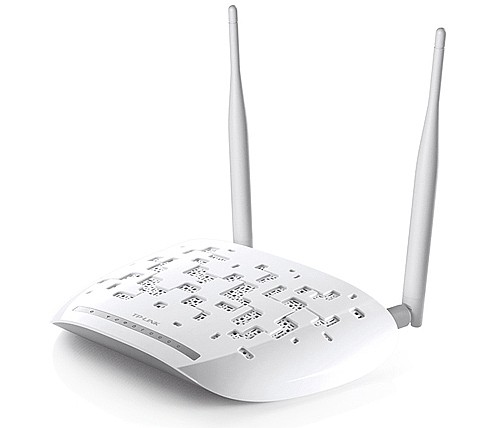

TP-Link

TD-W9970

300Mbps

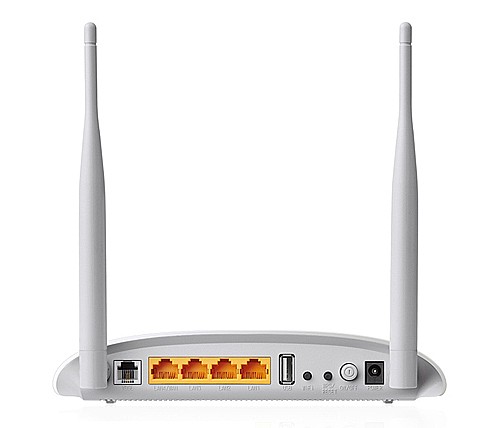

Interface::
4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port
Button: 1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch
External Power Supply: 12VDC/1A
Dimensions (W X D X H): 7.7*5.1*1.4 in. (195×130×36mm)
IEEE Standards: IEEE 802.3, 802.3u
VDSL2 Standards: ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ADSL Standards: Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards: ITU-T G.992.5
Antenna Type: Omni directional, Fixed
Antenna Gain: 2 x 5dBi

Wireless Standards:
IEEE 802.11b, 802.11g, 802.11n
Frequency: 2.400-2.4835GHz
Transmit Power:

Quality of Service:
WMM, Bandwidth Control (IP QoS)
Security: NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
IPv6: IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management: Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Port Forwarding: Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through: PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols: ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
Advanced Features: Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
USB Sharing: Storage Sharing
FTP Server
Media Server
Print Server
IGMP: IGMP snooping V1/V2/V3
IGMP Multicast
IPSec VPN: 10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

Windows 8.1/8/7/10/Vista/XP or Mac OS or Linux-based operating system

CE, FCC, RoHS

Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
